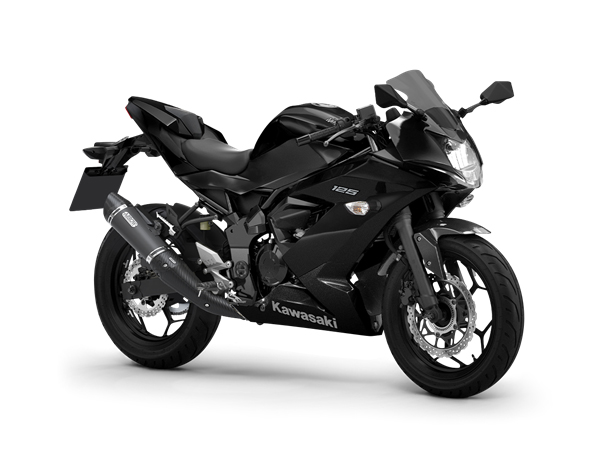

The Ninja style is clearly visible in the new Ninja 125 with a silhouette and graphic treatment that owes much to Jonathan Rea’s three-time WorldSBK winning Ninja ZX-10RR. With the big bike look and feel, the 125cc machine surely fits well in the Ninja family.
The Ninja 125’s willing engine is wrapped in a tubular trellis frame, matched to a box section swinging arm. Top that off with the low seat height and the young Ninja package is complete and ready to take on those sporty adventures ahead.
| Engine | |
| Engine Type | Liquid-cooled, 4-stroke Single |
| Displacement | 125cc |
| Bore x Stroke | 58 x 47.2 mm |
| Compression Ratio | 11.7:1 |
| Valve System | DOHC, 4 valves |
| Fuel System | Fuel injection: Ø 28 mm x 1 |
| Starting System | Electric |
| Lubrication | Forced lubrication, wet sump |
| Performance & Transmission | |
| Maximum power | 11 kW {15 PS} / 10,000 rpm |
| CO2 emission | 66 g/km |
| Maximum torque | 11.7 N•m {1.2 kgf•m} / 7,700 rpm |
| Transmission | 6-speed |
| Final drive | Chain |
| Primary Reduction Ratio | 2.966 (86/29) |
| Gear Ratios 1st | 2.833 (34/12) |
| Gear Ratios 2nd | 1.875 (30/16) |
| Gear Ratios 3rd | 1.444 (26/18) |
| Gear Ratios 4th | 1.208 (29/24) |
| Gear Ratios 5th | 1.056 (19/18) |
| Gear Ratios 6th | 0.962 (25/26) |
| Final reduction ratio | 3.500 (56/16) |
| Clutch | Wet multi-disc |
| Brakes & Suspension | |
| Brakes, front | Single 290 mm petal disc. Caliper: Dual piston |
| Brakes, rear | Single 220 mm petal disc. Caliper: Dual piston |
| Suspension, front | 37 mm telescopic fork |
| Suspension, rear | Uni-Trak, gas-charged shock with adjustable preload |
| Frame & Dimensions | |
| Frame type | Tubular diamond, steel |
| Trail | 90 mm |
| Wheel travel front | 110 mm |
| Wheel travel rear | 120 mm |
| Tyre, front | 100/80-17M/C 52S |
| Tyre, rear | 130/70-17M/C 62S |
| L x W x H | 1,935 x 685 x 1,075 mm |
| Wheelbase | 1,330 mm |
| Ground clearance | 170 mm |
| Fuel capacity | 11 litres |
| Seat height | 785 mm |
| Curb mass | 148 kg |
